Aegis

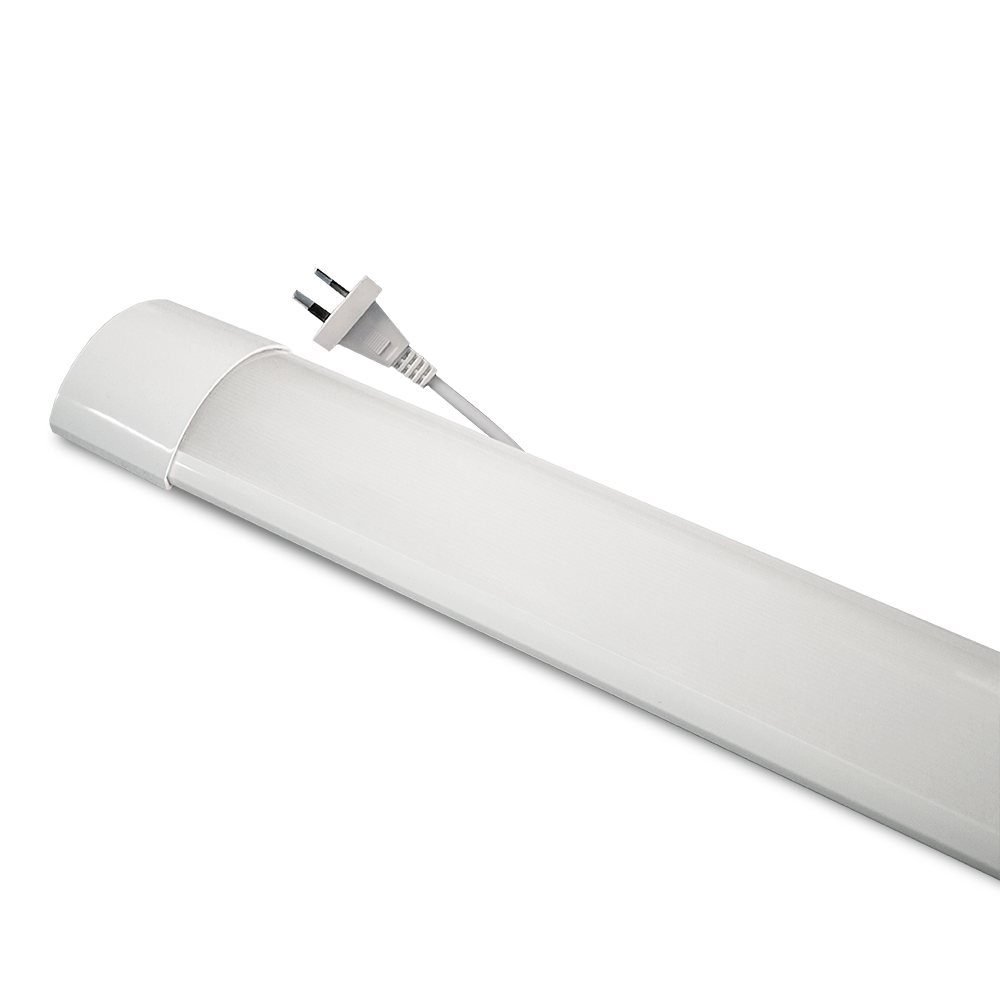

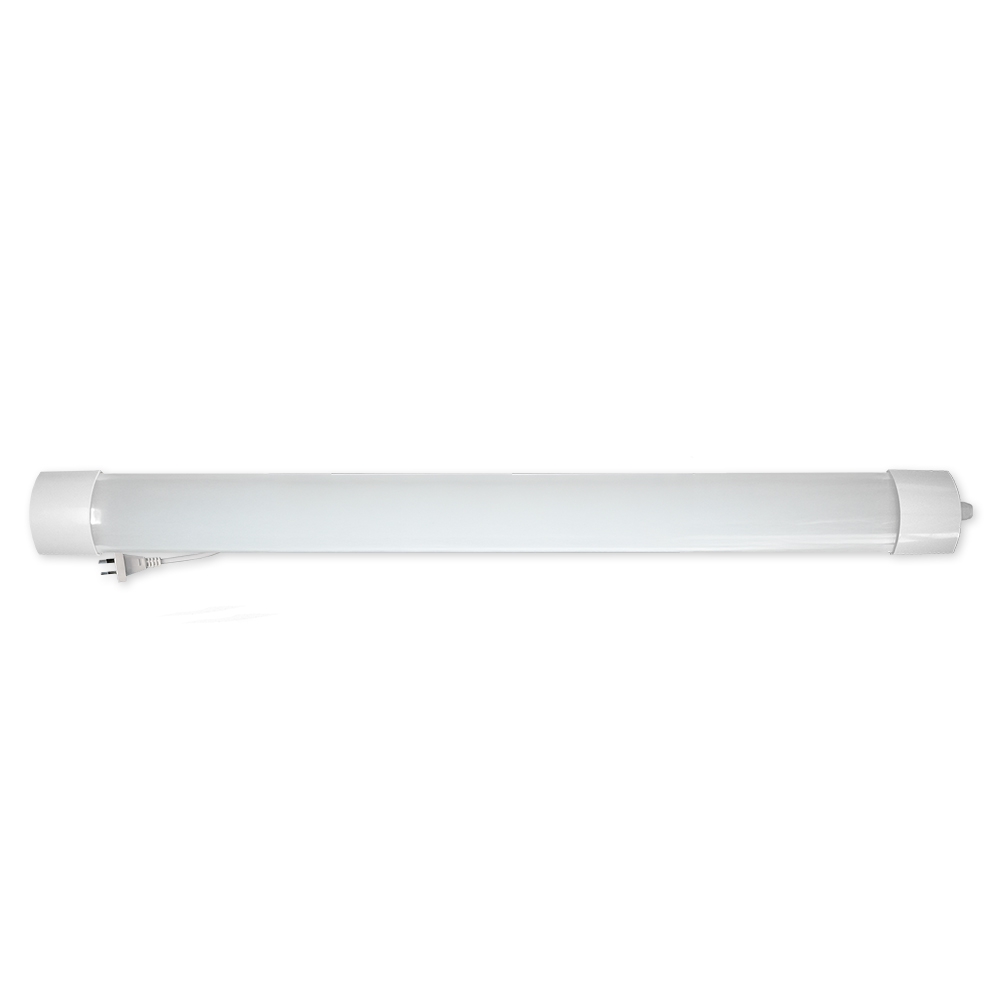

Weatherproof LED Batten – Tri-CCT
- IP65 Weatherproof rated for indoor and outdoor use
- 1m Flex and Plug for easy DIY installation and use
- Tri-CCT Selectable
Specifications
Efficiencies
| Total System Efficiency | 94 lm/W |
|---|---|
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |
Mechanical
| IP Rating | IP65 |
|---|---|
| Fitting Colour | White |
| Body Material | PC |
| Diffuser Material | PC |
| Installation Type | Surface mount |
Electrical
| Working Temp Range | 0 to 25 °C |
|---|---|
| Input Frequency | 50 Hz |
| Switch Type | External |
| Maximum Wattage | |
| 0743583 | 18 W |
| 0743582 | 36 W |
| System Max Wattage | |
| 0743583 | 18 W |
| 0743582 | 36 W |
| Input voltage | 220-240V~ |
Lamp
| Colour Rendering Index (CRI) | >80 |
|---|---|
| Globe Included | No |
| CCT Configuration | TRI-CCT |
| Beam Angle | 90 ° |
Colour temperature
0743582
| |||||||||||||
0743583
| |||||||||||||
Driver
| Driver Included | Yes |
|---|---|
| Integrated Driver | Yes |
| Dimmable | No |
| Flex & Plug or Lead Length | 1000 mm |
| Wiring Type | Non rewireable Flex & Plug |
| Driver Mode | Constant Current |
Warranty
| Domestic Use Warranty | 2 RTB (Total 2 Years) |
|---|
Dimensions
| Item Code | Product Height | Product Length | Product Width |
|---|---|---|---|
| 0743582 | 25 mm | 1200 mm | 76 mm |
| 0743583 | 25 mm | 600 mm | 76 mm |
0743582
0743583
Ordering Information
